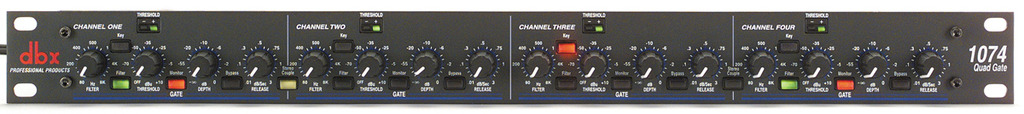

1074front lg lightbox
  • 1074front lg tiny square
  • 1074rear lg tiny square
Larger Images

Overview

The latest addition to the 10 Series product line, the dbx® 1074 QuadGate™, is the perfect companion to the 1066 and 1046. The 1074 offers 4 channels of gating with threshold, depth and release controls on each channel. The 1074, like the rest of the products in dbx 10 Series, is based on the legendary dbx V2 VCA and offers XLR inputs and outputs, and 1/4” side-chain input. In addition to an external key input per channel, the 1074 also has an internal filter that can be independently activated and controlled on a channel-per-channel basis. This filter allows the 1074 to not only clean up tracks, but gives you frequency selective control on each gate, to open exactly when you want it to. These features combined, make the 1074 an absolute must for those who require quad gating on applications including: Gating dry and percussive sounds such as snare drum and kick drum,gating sounds that have longer decay times such as cymbals and Pianos, gating hum or buzz from live instruments or recorded tracks or eliminating Headphone leakage into microphones. Gating instrument microphones to eliminate amplifier bleed.

From the company that has been redefining the standard of signal processing for more than 30 years, dbx® Professional Products comes a bulletproof product that caters to the scrutinizing needs of those who require the precision noise gating capabilities. Once again, the engineering staff at dbx® Professional Products have taken technology that has been over three decades in the making and have created a product that is flexible, versatile and rock solid in construction design. The 1074’s independent channel design with key filtering capabilities make it the perfect tool for countless applications.

Features

  • Four independent channels of gating
  • Independent key filtering
  • Independent Threshold and Release controls
  • Differentially balanced gold-plated XLR and 1/4" inputs and outputs
  • True RMS level detection
  • Stereo Coupling mode
  • Switchable +4dBu or -10dBv operation per channel

Specifications

Input Connectors XLR (Pin 2 and tip hot)
Input Type Electronically balanced/unbalanced, RF filtered
Input Impedance Balanced > 50 kOhm, unbalanced >25 kOhm
Max Input > +22 dBu balanced or unbalanced
CMRR 40dB: Typically >55 dB at 1 kHz
Key Input Electronically balanced/unbalanced, RF fitered Balanced 50kOhm, unbalanced > 25 kOhm
Output Connectors XLR (Pin 2 hot)
Output Type Servo-balanced/unbalanced, RF filtered
Output Impedance Balanced 60 Ohm, unbalanced 30 Ohm
Max Output > +22 dBm balanced, > +20 dBm unbalanced
Bandwidth 20 Hz to 20 kHz, +0/-0.5 dB
Frequency Response 0.35 Hz to 200 kHz, +0/-3 dB
Noise < -96 dBu, unweighted, 22 kHz measurement bandwidth
Dynamic Range > 115 dB, unweighted
THD+Noise 0.008% typical at +4 dBu (1 kHz unity gain), 0.08% typical at +20 dBu (1 kHz unity gain), < 0.1% any amount of compression up to 40 dB, 1 kHz
Interchannel Crosstalk < -80dB, 20 Hz to 20 kHz
Stereo Coupling True RMS Power Summing
Operating Voltage 100-120 VAC 50-60 Hz or 200-240 VAC 50/60 Hz
Power Consumption 30 Watts
Fuse 100-120 VAC:250 mA Slow Blow, 200-240 VAC:125 mA Type T
Power Connector IEC receptacle
Unit Weight 6.9 lbs.
Shipping Weight 9.3 lbs.
